Here you will find many fun and exciting kits for you to solder together. Our goal is your fun. Now you can enjoy assembling circuit board kits just like the computing pioneers did in the 70's and early 80's. We try to make low-cost fun kits for everybody. We are always here to help with any assistance.
Always wanted to build your own Altair but missed out during the 70′s? Well, now you can with the Altair 8800micro kit. It is a reduced size replica of the famous machine that inspired Bill Gates to start Microsoft. Program the emulated 8080 processor right from the front panel or run programs from a SDHC memory card!
Can’t solder, no problem. We offer a fully assembled and tested version for those who want to get started right away. Visit the store page to order yours.

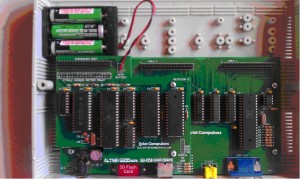

The new 88-DSK RAM Drive gives your Altair 8800micro the capability to run CP/M in a virtual disk drive setting. The board contains 2 512K RAM drives that are battery backed. You can now load disk images stored on the SD card into the RAM drives and run CP/M software right on the Altair micro.
Altair 8800micro
System specs
Processor: 8080A emulated by ATmega8515 microcontroller
Speed: 16MHz emulating 8MHz processor
Power: DC wall wart power supply
RAM: 32K Static expandable to 64K with 88-DSK RAM board
ROM: none
Case: Aluminum front/rear panels painted front with silkscreen artwork. Plastic top/bottom
Term: VT-100 emulated terminal onboard (can be disabled to run external terminal)
Video: 80×40 VGA and 40×25 composite (can use both at the same time)
I/O: Keyboard port, expansion slot, SD card slot for program storage
OS: Altair 4K, 8K BASIC, Enhanced BASIC and CP/M (with 88-DSK RAM board)
- ALTAIR2-300x139.jpg (10.17 KiB) Viewed 1904 times
- ALTAIR4-300x210.jpg (19.78 KiB) Viewed 1904 times
- 88RAMDRV-300x179.jpg (22.38 KiB) Viewed 1904 times
THE RANGE OF KITS AVAILABLE :
Products
4megGS
a2mp3
a2se
Altair 8800micro
Micro-KIM
PockeTerm
replica 1
